溢兴系列产品专题介绍(1)-3PE胶粘剂

发表时间:2022-01-17 12:10作者:技术部

3PE管道防腐胶粘剂

3PE pipe anti-corrosion hot melt adhesive

             Product introduction

             产品介绍

   溢兴系列防腐管道胶粘剂性能稳定、粘接力强、加工流动性好,不粘辊、不断带、不开叉、成膜性能好,性能满足GB/T 23257-2017要求,广泛适用于3PE防腐钢管

Yixing series anti-corrosion pipeline adhesive has stable performance, strong adhesive force, good processing fluidity, non stick roll, continuous belt, non split, good film-forming performance, and its performance meets the requirements of GB / T 23257-2017. It is widely used in 3PE anti-corrosion steel pipe.

Performance characteristics

性能特点

良好的加工性能

适用于不同固化速度的环氧粉末

Good processability

Suitable for epoxy powder with different curing speed

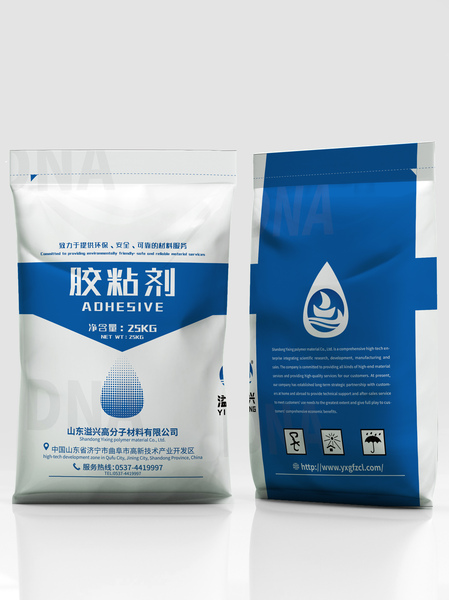

Packaging and storage

包装储存

   本系列产品以纸塑复合袋内衬聚乙烯薄膜袋热封包装,每袋净重25Kg在包装完好、正常储存条件下,保质期为一年。

This series of products are heat sealed in paper plastic composite bags lined with polyethylene film bags with a net weight of 25kg per bag. Under the condition of good packaging and normal storage, the shelf life is one year.

Processing temperature

加工温度

项目

预热段

中间段

过渡段

模头

熔体温度

project

Preheating section

Middle section

Transition

Die

Melt temperature

加工温度(C).

Processing temperature ( C)

140180

185200

190210

190200

190205

注:实际加工温度取决于设备的种类,上述条件可供参考。

Note: the actual processing temperature depends on the type of equipment, the above conditions can be used for reference.

Performance

性能指标

项目

Project

测试标准

standard test

   单位

   unit

典型值

Typical value

熔融指数

Melt index

GB/T 3682

g/10min

2.4

密度

Density

GB/T 1033.1

   g/cm³

0.930

熔点

Melting Point

DSC

128

软化点

Softening Point

GB/T 1633



110

脆化温度

Embrittlement Temperature

GB/T 5470



-50

拉伸强度

Tensile Strength

GB/T 1040.2

   MPa

21

断裂标称应变

Nominal Strain At Break

GB/T 1040.2

   %

740

剥离强度

(三层涂敷结构)

Peel Strength

(Three Layer Coating Structure)

GB/T 23257

N/cm

20±5

>160

50±5

>100


注:以上为实验室测试数据,真实可靠,可供参考。

Note: the above is the laboratory test data, which is true and reliable for reference.
